Vortech: Latest Revision Small Block Chevy Supercharger System

Hard Charging Machine

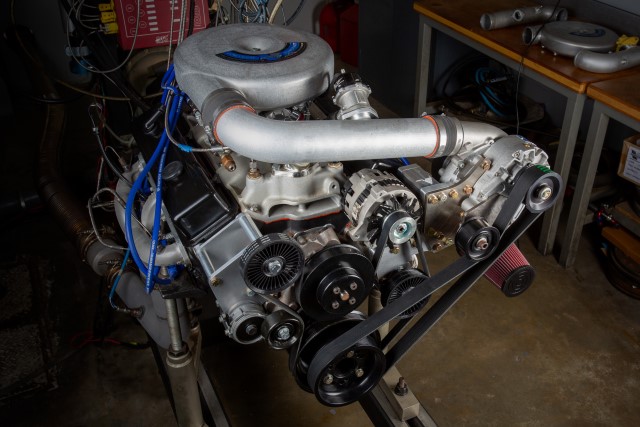

Vortech Superchargers now offers Small Block Chevy owners a way to easily make more power while still retaining Air Conditioning and Power Steering if needed. Utilizing a V-3 Si-Trim compressor capable of up to 775 HP and a 10-rib belt drive assembly, this new more compact Vortech Centrifugal Supercharger kit has smallest footprint and is specifically designed for stock to mid-level modified engines. Available for most 283-383c.i. SBC engines with stock or aftermarket heads, Vortech Superchargers Latest Revision SBC Supercharger System will definitely change your SBC’s attitude.

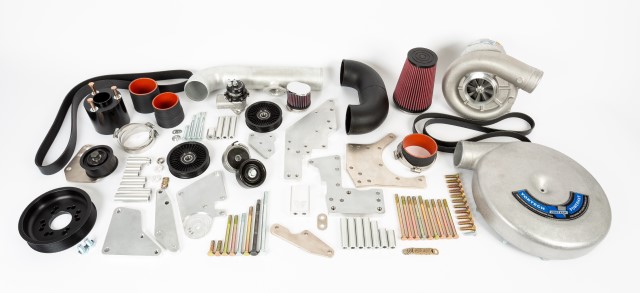

Latest Revision SBC Supercharger System – Features Include:

• V-3 Si compressor using 3.33 SC drive pulley supports up to 775 HP
•Billet Aluminum and Steel mounting plate configuration
•Includes Discharge Tube and Vortech Maxflow race bypass valve
•Air inlet assembly includes Roto-molded intake ducting and 3.5” x 7” cone air filter
•Drive assembly includes Tensioner, 10-rib 6” diameter Crank pulley and 10-rib belt
•Includes all Silicone Sleeves, Reducers, Stainless-steel clamps, and hardware
•Carburetor Hat, base, retainer, and gasket
•Designed for use with BBB Industries Alternator, AC Delco Water Pump & Crank Pulley, Vintage Air or
Sanden A/C Compressor and Tuff Stuff P/S pump
